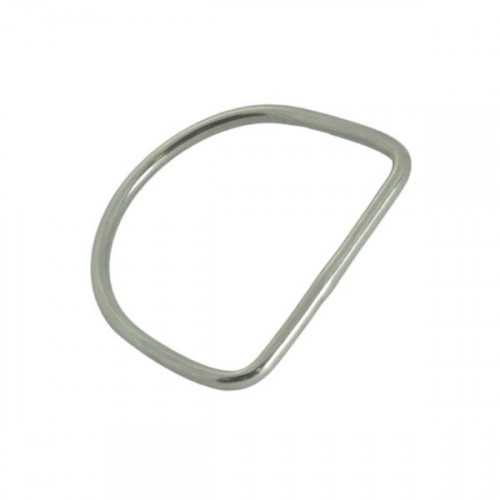

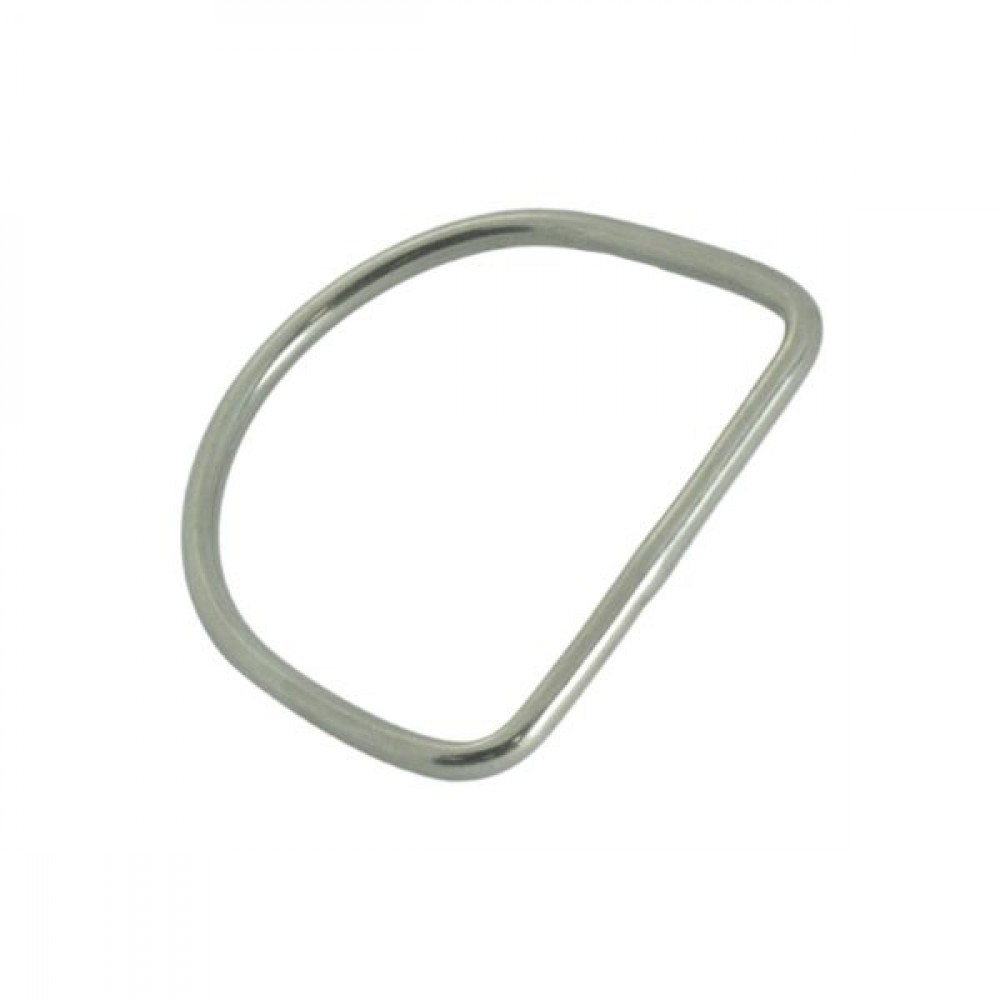

Dee Ring 3 x 40mm AISI 316

  -Imperial closest equivalent 3/16 inches (4.7625mm) x 1 inch (25.4mm)

Miami Stainless Dee Rings are available in both high quality AISI 316 marine grade stainless steel and AISI 304 grade stainless steel.

CODE	SIZE	GRADE	D	A	H	BREAK LOAD
S325-0315304	3X15	304	3	15	12.8	265
S325-0340	3X40	316	2.7	40	38
S325-0425	4X25	316	4	27	22	800
S325-0425304	4X25	304	4	25	21.2	800
S325-0525	5X25	316	5	25	22	1000
S325-0640	6X40	316	6	40	35.9	1800
S325-0640304	6X40	304	6	40	36.4	1050
S325-0650	6X50	316	6	50	43	1800
S325-0650304	6X50	304	6	50	47.8	1050
S325-0850	8X50	316	8	50	44	2800
S325-0850304	8X50	304	8	50	46.6	2800
S325-1065304	10X65	304	10	65	54.9	5000
