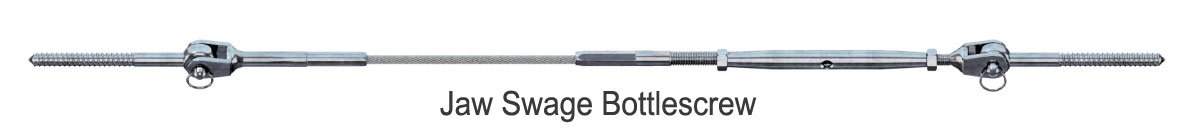

Our Jaw Swage Bottlescrew System is one of our most popular streamline stainless steel wire balustrade systems for stair or angled sections.  Available to suit both timber and metal posts, the Jaw Swage Bottlescrew System is perfect for high use areas where children, pets or guests may pull on the wires. To install the Jaw Swage Bottlescrew System into timber posts simply screw the supplied Screw Eyes into your timber posts, attach the pre-swaged fittings at the end of each wire by siding the pin through the Screw Eye and create tension by rotating the Bottlescrew using a ProRig C-Spanner.


To order, simply measure the distance from inside post to inside post between the starting and finishing points of your posts and provide them to Miami Stainless either through our online Balustrade Builder or contact us directly via phone, fax or email. Your wires will arrive to your door pre-swaged to your exact measurements for a very quick and simple installation.



Please Note: This method is available to suit metal and timber posts.



FAQ About This Method


Our Jaw Swage Bottlescrew System is one of our most popular streamline stainless steel wire balustrade systems for stair or angled sections.  Available to suit both timber and metal posts, the Jaw Swage Bottlescrew System is perfect for high use areas where children, pets or guests may pull on the wires.



To install the Jaw Swage Bottlescrew System into timber posts simply screw the supplied Screw Eyes into your timber posts, attach the pre-swaged fittings at the end of each wire by siding the pin through the Screw Eye and create tension by rotating the Bottlescrew using a ProRig C-Spanner.



To order, simply measure the distance from inside post to inside post between the starting and finishing points of your posts and provide them to Miami Stainless either through our online Balustrade Builder or contact us directly via phone, fax or email. Your wires will arrive to your door pre-swaged to your exact measurements for a very quick and simple installation.



Please Note: This method is suitable for both timber and metal posts.



FAQ About This Method



Can I install this method myself? Yes, even someone with no experience can easily install all our wire balustrade systems.



Do I need any special tools? For timber posts, the Jaw Swage Bottlescrew System does not need any specialist tools other then common handyman tools such as an electric drill and 4.0mm drill bit.  You can also purchse our Screw Eye Drive Bit which allows for easier installation of the Screw Eyes into your timber posts.



What size and type of stainless steel wire do I use? This method is almost always used with 3.2mm 1 x 19 stainless steel wire rope. This wire is the most functional for stainless steel wire balustrade systems due to its bright surface finish, attractive appearance, durability, strength and low stretch.



What spacing do I need between my wires? When using 3.2mm 1 x 19 stainless steel wire, you will usually need 80mm spacing (usually 11 runs) between your wires when using a standard one (1) meter high handrail. Please click here for more information on the current NCC Regulations.



Can I use this balustrade system on a stair or angled section? Yes, the Jaw Swage Bottlescrew System for timber and metal posts is the most common system used for stair or angled sections.



When using this system for timber posts, what size pilot hole should I drill for my Screw Eyes? You will require a 4.0mm pilot hole to suit the Screw Eyes.



What is the maximum length run I can do? Both Jaw Swage Bottlescrew Systems can easily span up to 10 meters. Spans of up to 16 meters can be achieved by using a Tensioner at each end, please contact Miami Stainless for further information.



What size hole should I drill through my intermediate posts? A 7.5mm hole through your intermediate posts will allow the Swage Stud pass through. Please note: If you are using grommets, the required drill size is 11/32".



Can I take my balustrade wire around corners? Miami Stainless highly recommends that you do not bend your wire around corners; this can fatigue the wire, put excessive stress on your posts, and make it difficult to get the required tension on your wire to meet NCC Regulations.



Can I use this method if I have metal posts? Yes, you can use this system with metal posts by inserting Blind Nut Rivets and Eye Bolts into your metal posts. Click on the link above to see the Jaw Swage Bottlescrew System for Metal Posts.



What do I need to get a quote? To get a free, no obligation quote you will need to know how many sections you require and the length of each section. You will also need the height of your handrail between your decking or platform and the underside of your handrail.  You can use the Miami Stainless Balustrade Builder to compare different wire balustrade systems at your convenience or contact us directly.



How do I order? Simply follow the steps using the Miami Stainless Balustrade Builder and make a secure payment by credit card or you can contact us directly.



If you contact Miami Stainless directly we require your exact measurements from the inside to inside face of your posts to be supplied in writing.  You can provide these measurements by email or fax. At this time payment is required which can be made by either credit card over the phone or by EFT. When making payment by EFT, please email or fax your payment remittance with invoice number to make sure your items are not delayed. Please note: For security reasons, please do not email your credit card details.



How much will freight cost me and when can I expect delivery? The Jaw Swage Bottlescrew System is usually dispatched within 3 full working days* after full payment is received. Miami Stainless has a maximum freight charge of $12 plus GST for Road Express via Star Track Express Australia wide. Please see the Delivery Table below for approximate delivery times.  Please note: Miami Stainless offers an Air Freight service for packages under 5kg.  Please contact us for further information.



*While Miami Stainless endeavors to make sure all stainless steel wire balustrade systems are dispatched within 3 full working days, during busy times such as leading into Christmas, we can experience a high work-load and delays. Please keep up-to-date with Miami Stainless news by signing up for our e-newsletter on the link below.



Destination

Approximate Delivery Time

Queensland

1 2 full working days

New South Wales

1 2 full working days

Australian Capital Territory

1 2 full working days

Victoria

2 3 full working days

South Australia

2 3 full working days

Tasmania

5 6 full working days

Northern Territory

6 7 full working days

Western Australia

6 7 full working days



*Miami Stainless cannot guarantee freight delivery times



What should I do if I have any further questions? If you have any further questions please contact Miami Stainless directly on 1800 022 122 or by email, [email protected] and one of our friendly staff will be happy to help.
