Threaded Insert M6 x 32mm RHT ProRig AISI 304

$2.70
Ex Tax1: $2.45
  • Brand: Miami Stainless
  • Product Code: S3310R-0632PR
  • Availability: In Stock

OverView

Threaded Insert M6 x 32mm RHT ProRig AISI 304Miami Stainless stocks the premium quality ProRig

Below are optional accessories that are suitable for use with this product

If you would like any of these accessories, enter desired quantities here, then click ADD TO CART button below

  • Grand total (including added accessories):

  • Grand total (Ex Tax):

Threaded Insert M6 x 32mm RHT ProRig AISI 304

Miami Stainless stocks the premium quality ProRig Threaded Inserts.  ProRig Threaded Inserts are manufactured to the highest standards giving you an extremely superior quality, superbly finished fitting.  ProRig Threaded Inserts are easy to install and come with right-hand and left-hand internal threads to make another aesthetically pleasing, streamline stainless steel balustrade system.

This thread insert can be used with the Insert Swage Stud Balustrade System for timber posts.  You can find out more about this system by visiting the Insert Swage Stud System page or get an instant online quote by visiting our BALUSTRADE BUILDER

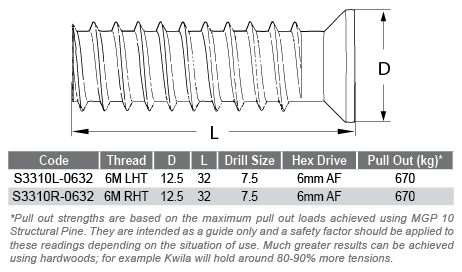

Code

Thread

D

L

Drill Size

Hex Drive

Pull Out (kg)*

S3310L-0632

M6 LHT

12.5

32

7.5

6mm AF

670

S3310R-0632

M6 RHT

12.5

32

7.5

6mm AF

670

S3310R-0832

8M RHT

14

30

9.5mm

8mm AF

810


* Pull out strengths are based on the maximum pull out loads achieved using MGP 10 Structural Pine.  They are intended as a guide only and a safety factor should be applied to these readings depending on the situation of use.  Much greater results can be achieved using hardwoods; for example Kwila will hold around 80-90% more tension.
