Rigging Screw, bronze thread terminal/toggle 1/4 inch for 3 mm and 1/8 inch wire w/6.35 mm pin
Retail: $78.73
Trade: $68.46
Ex Tax: $62.24
- Product Code: BW330306A
- Availability: In Stock
OverView
Rigging Screw, bronze thread terminal/toggle 1/4 inch for 3 mm and 1/8 inch wire w/6.35 mm pinThe Blue Wave chromed bronzed body features a number of details that makes it the best choice for e...Rigging Screw, bronze thread terminal/toggle 1/4 inch for 3 mm and 1/8 inch wire w/6.35 mm pin
The Blue Wave chromed bronzed body features a number of details that makes it the best choice for exclusive and durable rigging. The sleek, open bronze body prevents the threads from seizing up, they are delivered with laser engraved thread size, Blue Wave logo and side marking of the left thread.
The high quality Danish manufactured stainless steel Blue Wave rigging screw is perfect for coastal and marine applications, including yachting, boating and commercial rigging applications.

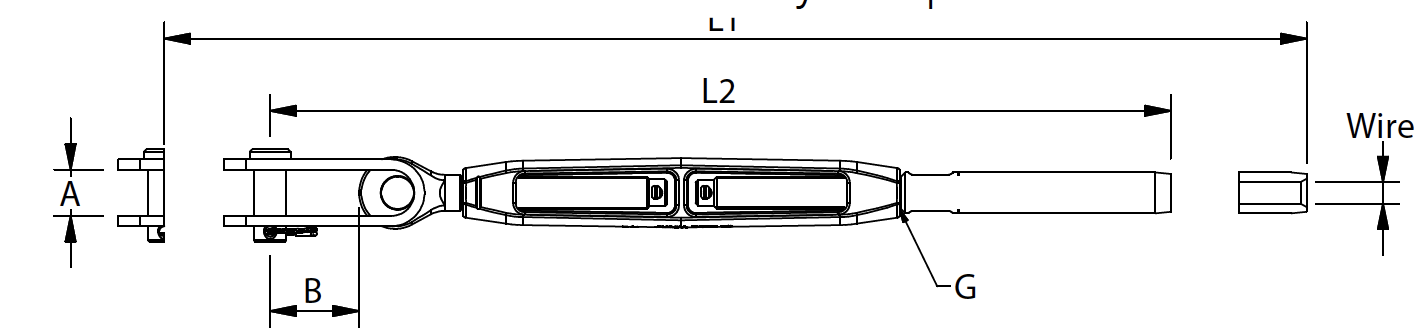

CODE | THREAD G | WIRE - MM | WIRE - INCH | PIN | A | B | L1 | L2 | BREAKLOAD KG |
BW330306A5G | 1/4" | 3 | - | 5 | 7 | 11.5 | 250 | 188 | 1000 |
BW333206A5G | 1/4" | - | 1/8" | 5 | 7 | 11.5 | 250 | 188 | 1000 |
BW330406A5G | 1/4" | 4 | 5/32" | 5 | 7 | 11.5 | 260 | 198 | 1000 |
BW330406A6G | 1/4" | 4 | 5/32" | 6.35 | 10 | 14 | 269 | 207 | 1300 |
BW330506A6G | 1/4" | 5 | 3/16" | 6.35 | 10 | 14 | 273 | 211 | 1300 |
BW330606A6G | 1/4" | 6 | - | 6.35 | 10 | 14 | 265 | 203 | 1300 |
BW330306A | 1/4" | 3 | - | 6.35 | 8 | 17 | 255 | 193 | 1300 |
BW333206A | 1/4" | - | 1/8" | 6.35 | 8 | 17 | 255 | 193 | 1300 |
BW330406A | 1/4" | 4 | 5/32" | 6.35 | 8 | 17 | 265 | 203 | 1300 |
BW330408A | 5/16" | 4 | 5/32" | 8 | 10 | 20 | 304 | 228 | 1700 |
BW330508A | 5/16" | 5 | 3/16" | 8 | 10 | 20 | 310 | 234 | 2200 |
BW330510A | 3/8" | 5 | 3/16" | 9.5 | 12 | 26 | 349 | 265 | 2400 |
BW335510A | 3/8" | - | 7/32" | 9.5 | 12 | 26 | 357 | 273 | 3400 |
BW330610A | 3/8" | 6 | - | 9.5 | 12 | 26 | 364 | 280 | 3400 |
BW330611AX | 7/16" | 6 | - | 11 | 15 | 28 | 397 | 307 | 4600 |
BW330711AX | 7/16" | 7 | 9/32" | 11 | 15 | 28 | 408 | 318 | 4600 |
BW330612AX | 1/2" | 6 | - | 12.7 | 18 | 35 | 425 | 319 | 5400 |
BW336312AX | 1/2" | - | 1/4" | 12.7 | 18 | 35 | 425 | 319 | 5200 |
BW330712AX | 1/2" | 7 | 9/32" | 12.7 | 18 | 35 | 433 | 327 | 6100 |
BW330812AX | 1/2" | 8 | 5/16" | 12.7 | 18 | 35 | 448 | 342 | 6100 |
BW330816AX | 5/8" | 8 | 516" | 16 | 20 | 41 | 536 | 404 | 8700 |
BW331016AX | 5/8" | 10 | - | 16 | 20 | 41 | 545 | 413 | 9700 |
* NOTE: TERMINAL 0D. =21.4
NOTE: All breakloads are determined by clevis pen and thread.
