New Rafter Bracket RB-30

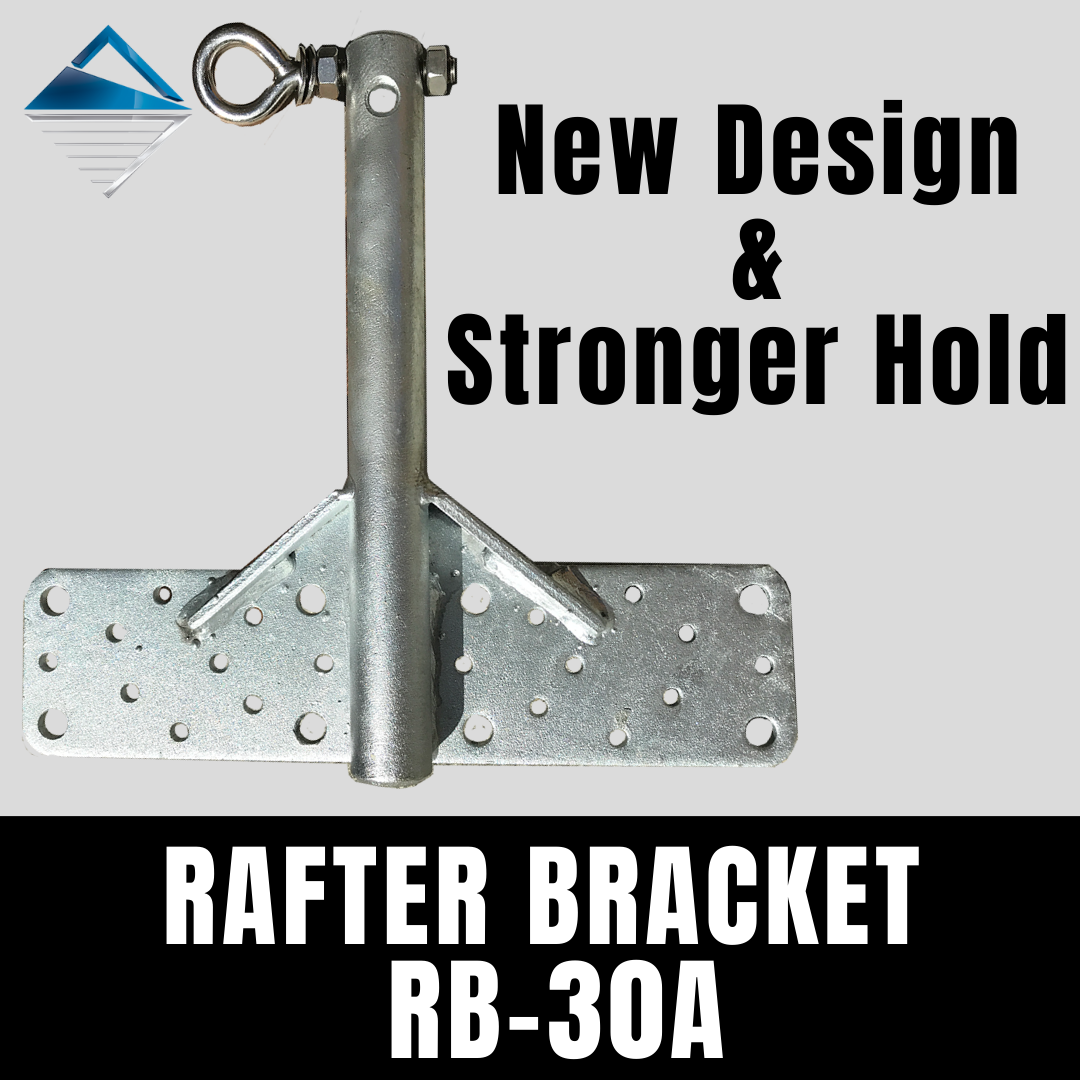

The New Rafter Bracket RB-30A

• 5 times stronger than all other rafter brackets – Minimum
• Made with high strength steel
• Only 2.5mm of deflection at the tile height when loaded to 1200kg
• LOWER COST than other Rafter Bracket Assemblies
• Special Design Large Oversized Washers Included to spread the load over a larger area over a larger area
• 2 through holes allow for fitting of Eye Bolts in 4 directions
• Shade sail can be connected at any angle

INCLUDED ITEMS	CODE	QUANTITY
Rafter Bracket 30mm	RB-30	1
Rafter Bracket Backing Plates	RB-30BP	4
Eye Bolt M10*60mm Prorig	S3191-10060PR	1
Hex Nut M10 Stainless	SN-10	1
Hex Bolt M10 x 75mm (with nut) Zinc	HB-10075ZN	8
M10 Washer, Zinc Plating	ZW-10	8

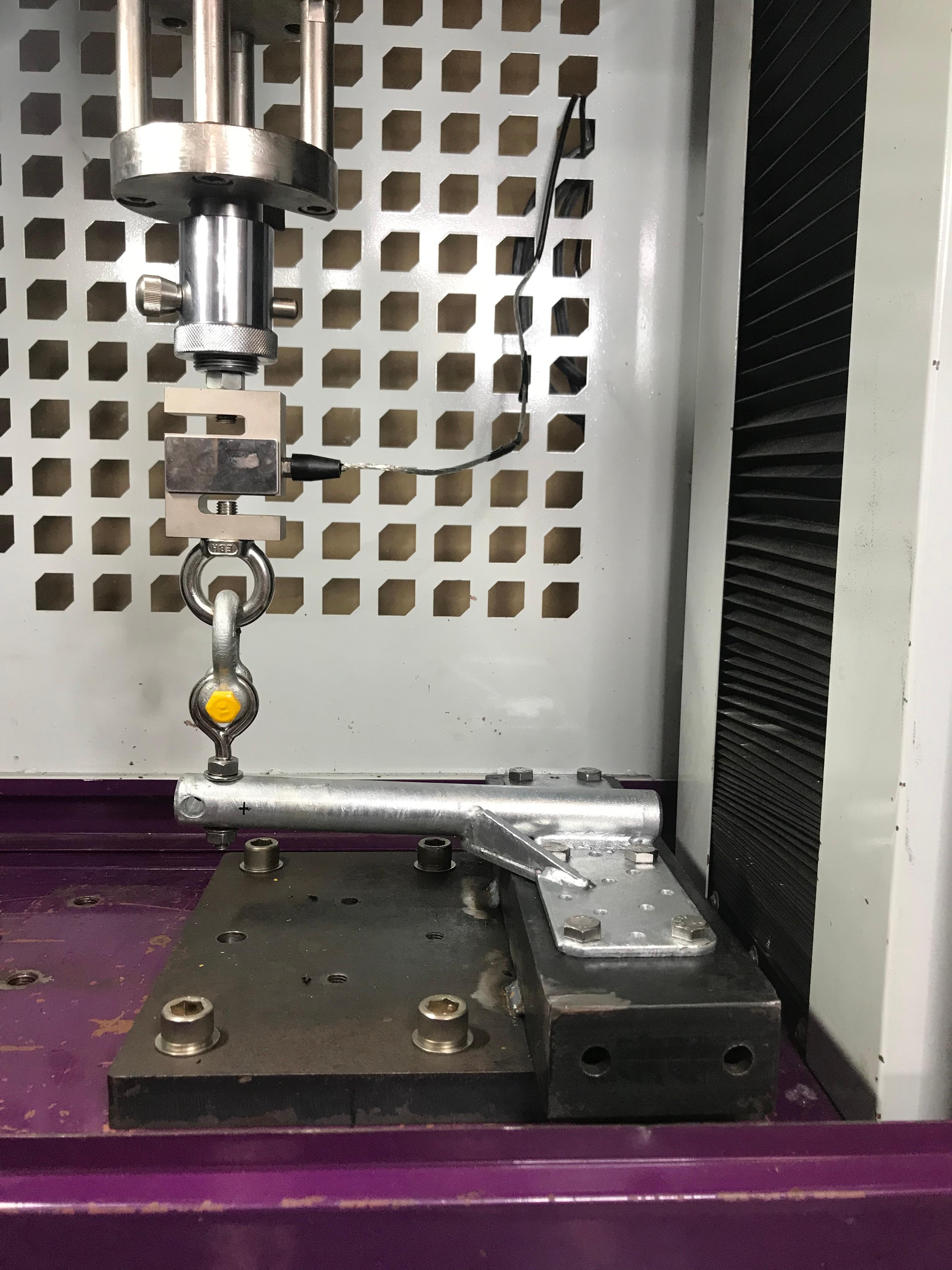

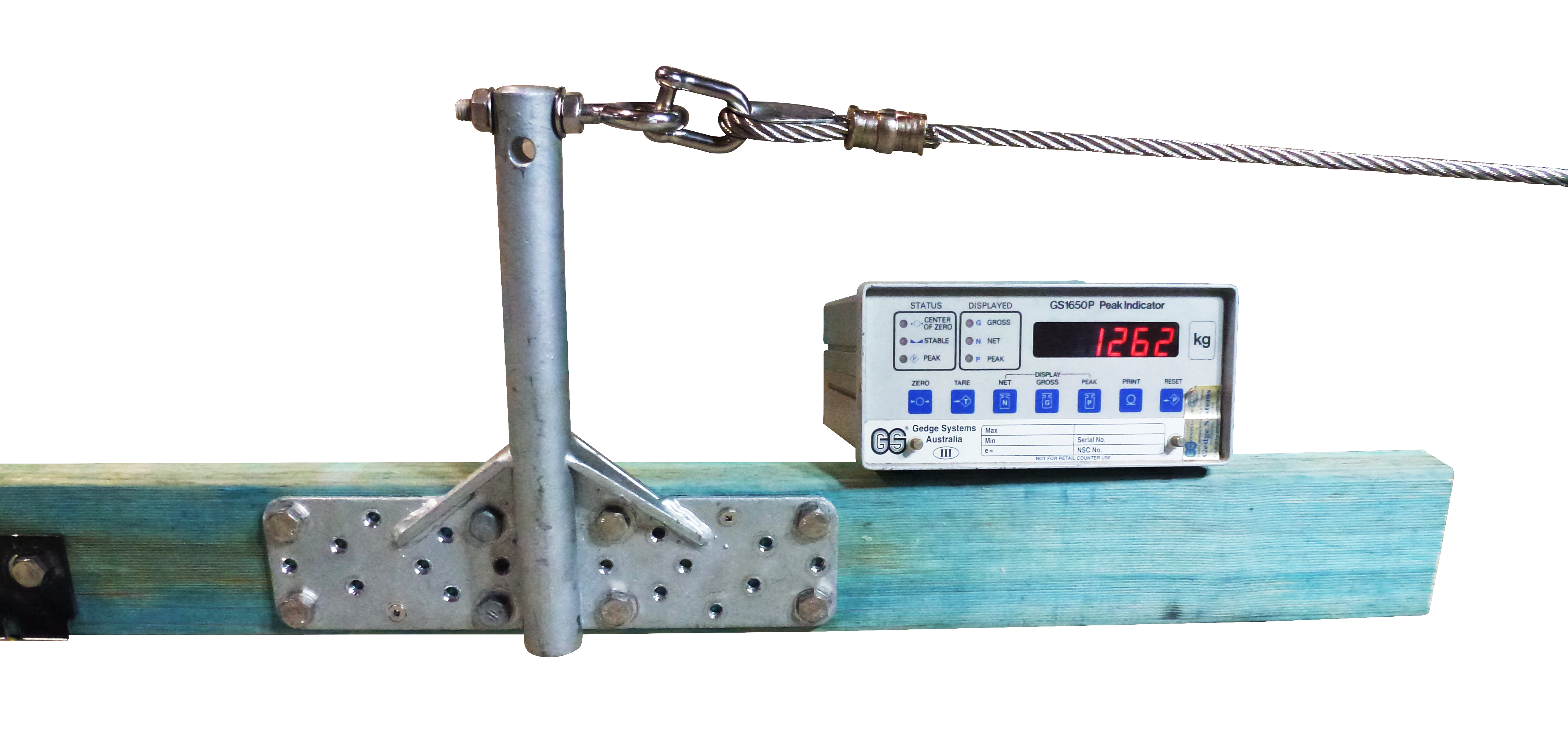

Bracket shown with 1250kgf load applied at right angle to the plate. Rafter Bracket returns to original shape when load is removed.  No permanent deformation whatsoever.
