Bottlescrew Jaw/Swage- AISI 316 Grade Stainless Steel - ALL SIZES

S312M-0503PR

Bottlescrew 5mm Mini Jaw/Swage suits 3.2mm wire

$6.07 ^{ex. GST}

S312M-0503EC

Bottlescrew 5mm Mini Jaw/Swage suits 3.2mm wire

$3.59 ^{ex. GST}

S312T-0503PR

Bottlescrew 5mm Jaw/Swage suits 3.2mm wire

$5.92 ^{ex. GST}

S312T-0503EC

Bottlescrew 5mm Jaw/Swage suits 3.2mm wire

$3.03 ^{ex. GST}

S312T-0603EC

Bottlescrew 6mm Jaw/Swage suits 3.2mm wire

$5.67 ^{ex. GST}

S312T-0603PR

Bottlescrew 6mm Jaw/Swage suits 3.2mm wire

$8.40 ^{ex. GST}

S312T-0604EC

Bottlescrew 6mm Jaw/Swage suits 4mm wire

$5.59 ^{ex. GST}

S312T-0604PR

Bottlescrew 6mm Jaw/Swage suits 4mm wire

$8.39 ^{ex. GST}

S312T-0805PR

Bottlescrew 8mm Jaw/Swage suits 5mm wire

$15.92 ^{ex. GST}

S312T-0805EC

Bottlescrew 8mm Jaw/Swage suits 5mm wire

$7.67 ^{ex. GST}

S312T-1006EC

Bottlescrew 10mm Jaw/Swage suits 6mm wire

$11.08 ^{ex. GST}

S312T-1206EC

Bottlescrew 12mm Jaw/Swage suits 6mm wire

$13.39 ^{ex. GST}

S312T-1206PR

Bottlescrew 12mm Jaw/Swage suits 6mm wire

$31.16 ^{ex. GST}

S312T-1208EC

Bottlescrew 12mm Jaw/Swage suits 8mm wire

$16.53 ^{ex. GST}

S312T-1208PR

Bottlescrew 12mm Jaw/Swage suits 8mm wire

$34.52 ^{ex. GST}

S312T-1610PR

Bottlescrew 16mm Jaw/Swage suits 10mm wire

$64.01 ^{ex. GST}

S312T-2012PR

Bottlescrew 20mm Jaw/Swage suits 12mm wire

$93.72 ^{ex. GST}

S312T-2416PR

Bottlescrew 24mm Jaw/Swage suits 16mm wire

$224.05 ^{ex. GST}

To access Trade Prices, click below TRADE FORM

Bottlescrew Jaw/Swage to wire AISI 316

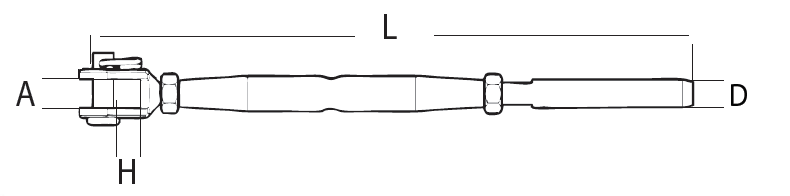

A Jaw/Swage Bottlescrew or Rigging Screw consists of one (1) AISI 316 marine grade stainless steel Threaded Jaw, also known as Threaded Fork, and one (1) AISI 316 grade stainless steel Swage Terminal, also known as Swage Stud, screwed into each end of a spun stainless steel threaded pipe, or Bottlescrew. Miami Stainless Threaded Forks are cast AISI 316 marine grade stainless steel with forged AISI 316 marine grade stainless steel pins and are designed to attach to a wide range of fixtures and fittings. Miami Stainless Swage Terminals are forged AISI 316 marine grade stainless steel and are designed to be swaged directly to stainless steel wire rope. Miami Stainless range of Bottlescrews include Econ® and the ultra high quality ProRig brand. Please note; Swage Terminals must be swaged to wire rope with an appropriate swaging press. Bottlescrews are specifically designed to conceal the threads within the pipe for an aesthetically pleasing streamline look. jaw swage bottlescrew econ

PRORIG RANGE

CODE	THREAD	FOR WIRE	L-MIN	L-MAX	PIN	D	A	H	BREAK LOAD
S312T-0503	M5	3.2mm	160	225	5	7	7	9	600
S312M-0503	M5	3.2mm	113	155	5	7	7.5	9	600
S312T-0603	M6	3.2mm	175	250	6	7	8	9	1000
S312T-0604	M6	4.0mm	185	270	6	8.1	8	9	1000
S312T-0805	M8	5.0mm	210	300	8	10.2	11	11	1400
S312T-1206	M12	6.0mm	295	425	12	12.5	15	21	4000
S312T-1208	M12	8.0mm	310	445	12	16.1	14	21	4500
S312T-1610	M16	10mm	390	555	16	17.85	17.3	25.25	8200
S312T-2012	M20	12mm	465	645	20	21	20	28	12500
S312T-2416	M24	16mm	625	820	24	28	30	40	18500

ECON RANGE

CODE	THREAD	FOR WIRE	L-MIN	L-MAX	PIN	D	A	H	BREAK LOAD
S312T-0503	M5	3.2mm	160	225	5	7	7	9	600
S312M-0503	M5	3.2mm	113	155	5	7	7.5	9	600
S312T-0603	M6	3.2mm	175	250	6	7	8	9	1000
S312T-0604	M6	4.0mm	185	270	6	8.1	8	9	1000
S312T-0805	M8	5.0mm	210	300	8	10.2	11	11	1400
S312T-1006	M10	6.0mm	255	350	10	12.5	12	15	2200
S312T-1206	M12	6.0mm	295	425	12	12.5	15	21	4000
S312T-1208	M12	8.0mm	310	445	12	16.1	14	21	4500

Break loads shown refer to ProRig products only except where specified.
