Swage Sleeve/Ferrule - CLAMP - Aluminium - ALL SIZES

CP-125A

Swage Sleeve 2.5mm Clamp Aluminium

$0.51 ^{ex. GST}

CP-130A

Swage Sleeve 3.0mm Aluminium

$0.28 ^{ex. GST}

CP-140A

Swage Sleeve 4.0mm Clamp Aluminium

$0.37 ^{ex. GST}

CP-150A

Swage Sleeve 5.0mm Clamp Aluminium

$0.62 ^{ex. GST}

CP-160A

Swage Sleeve 6.0mm Clamp Aluminium

$1.50 ^{ex. GST}

To access Trade Prices, click below TRADE FORM

Swage Sleeve/Ferrule Wire Clamp Aluminium

Miami Stainless supplies Clamp classic figure 8 Aluminium Swage Sleeves, also known as Ferrules. Aluminium Swage Sleeves can be used with stainless steel wire rope to fix a range of stainless steel fittings.

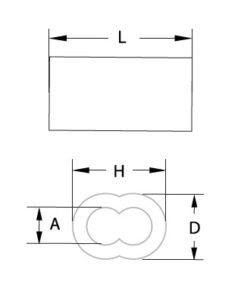

CODE	SUITS WIRE	BRAND	D	L	A	H
CP-115NP	1.6mm	Clamp	4.5	9	2	7
CP-120NP	2.0mm	Clamp	5	9	2	7
CP-125NP	2.5mm	Clamp	7	11	3	10
CP-130NP	3.2mm	Clamp	7.4	13	3.6	10.65
CP-140NP	4mm	Clamp	9.1	16.25	4.6	14.8
CP-150NP	5mm	Clamp	10.3	18	5.4	17.1
CP-164NP	1/4"	Clamp	11.7	24.7	7.4	19.8
CP-160NP	6mm	Clamp	12.4	20.3	6.3	19.9
CP-160*	6mm	Clamp	12.4	20.3	6.3	19.9
CP-180*	8mm	Clamp	15.5	27.9	8.5	24.6
CP-199*	10mm	Clamp	17.4	31.7	10	27
