Swage Sleeve/Ferrules - CLAMP - Copper - ALL SIZES

CP-120

Swage Sleeve 2.0mm Clamp Copper

$0.41 ^{ex. GST}

CP-125

Swage Sleeve 2.5mm Clamp Copper

$0.54 ^{ex. GST}

CP-130

Swage Sleeve 3.2mm Clamp Copper

$0.70 ^{ex. GST}

CP-140

Swage Sleeve 4.0mm Clamp Copper

$1.12 ^{ex. GST}

To access Trade Prices, click below TRADE FORM

Swage Sleeve/Ferrule suits Wire Clamp Copper

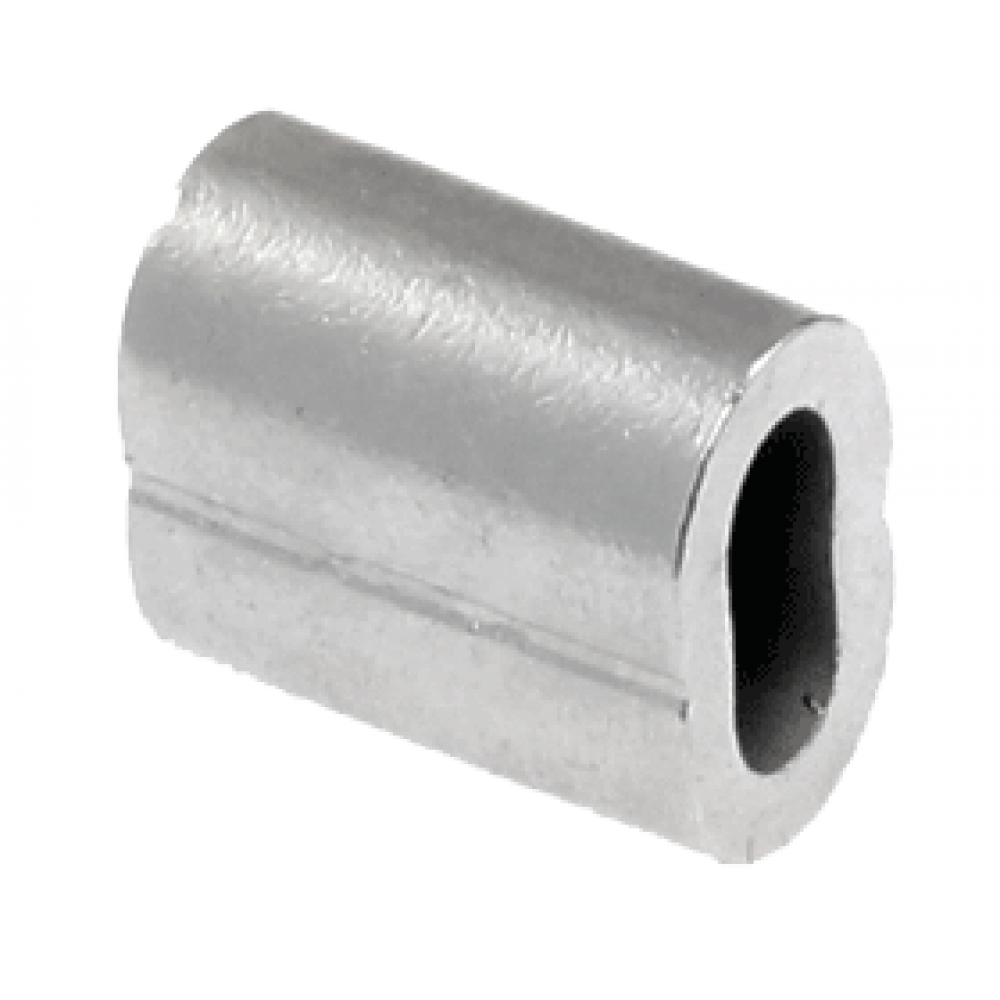

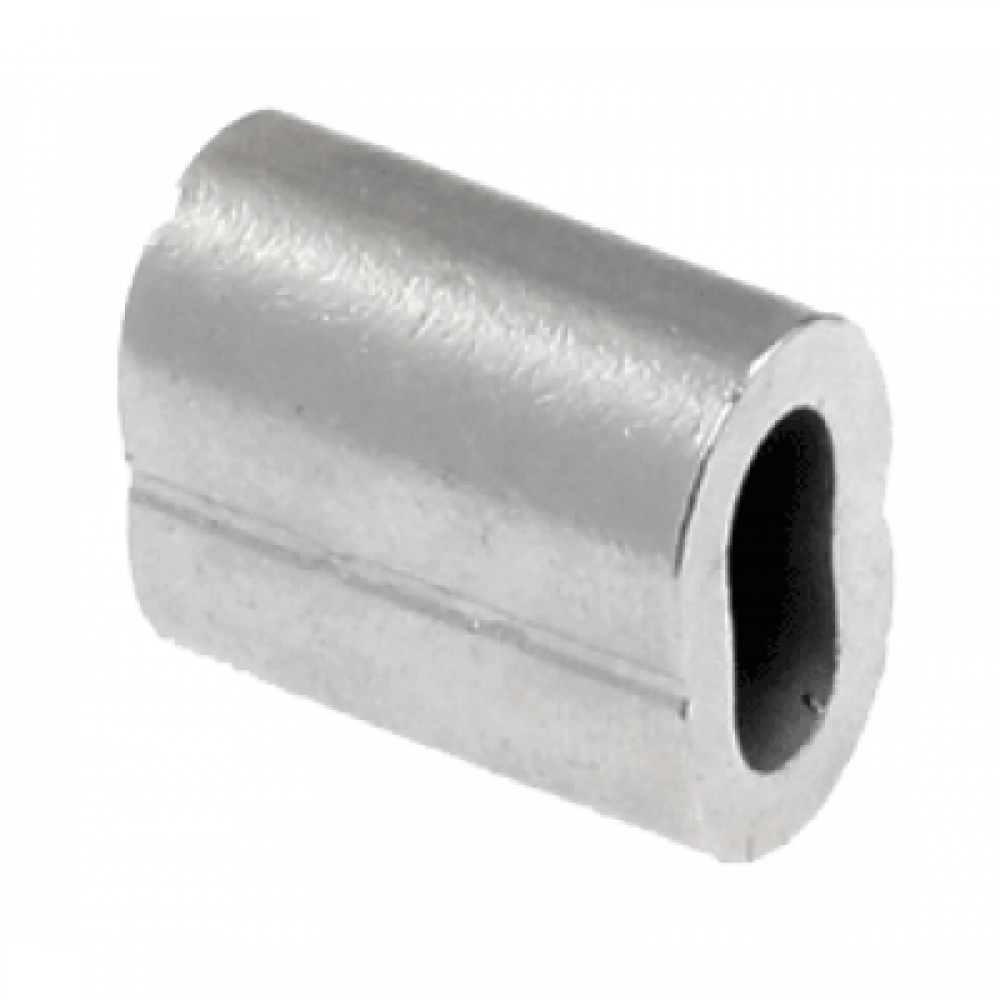

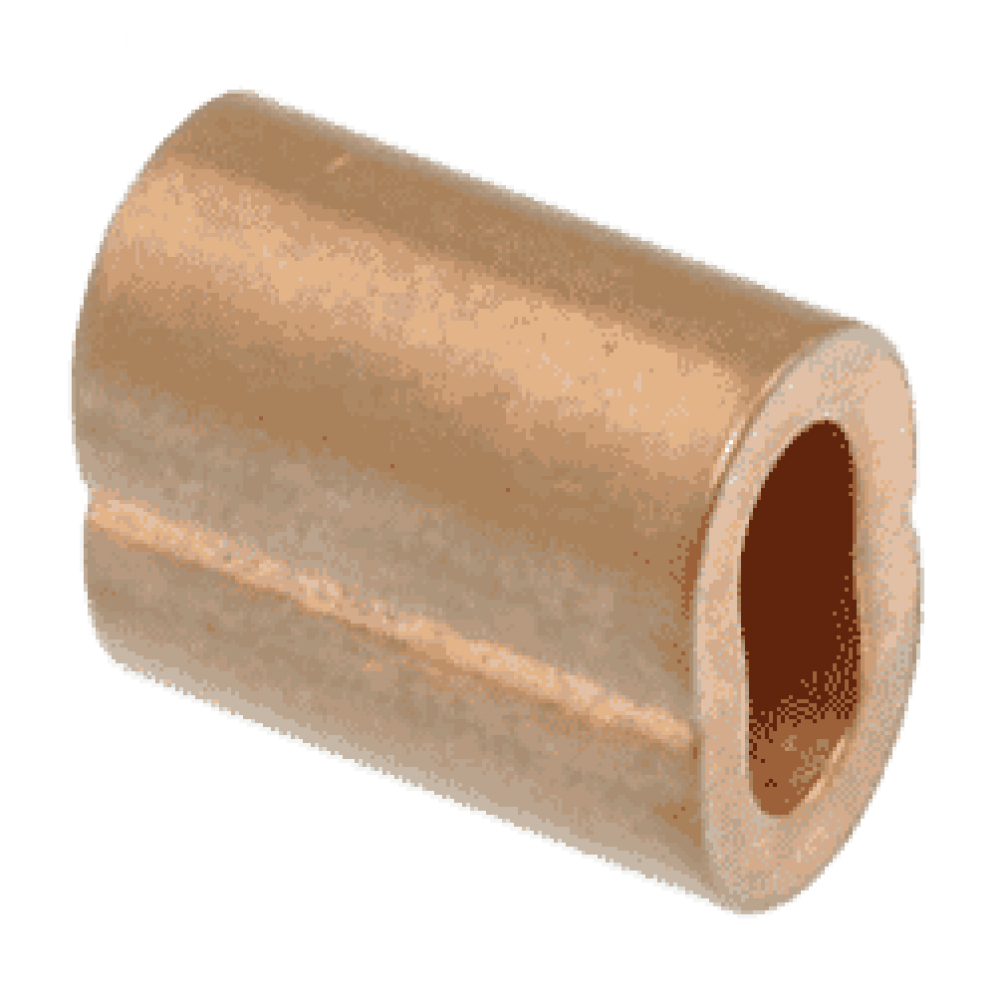

Miami Stainless supplies Clamp classic figure 8 Copper Swage Sleeves, also known as Ferrules. Copper Swage Sleeves can be used with stainless steel wire rope to fix a range of stainless steel fittings.

CODE	SUITS WIRE	BRAND	D	L	A	H
CP-120	2.0mm	Clamp	5	9	2	7
CP-125	2.5mm	Clamp	7	11	3	10
CP-130	3.2mm	Clamp	7.4	13	3.6	10.65
CP-140	4mm	Clamp	9.1	16.25	4.6	14.8
CP-150	5mm	Clamp	10.3	18	5.4	17.1
CP-160	6mm	Clamp	12.4	20.3	6.3	19.9
CP-180	8mm	Clamp	15.5	27.9	8.5	24.6
CP-199	10mm	Clamp	17.4	31.7	10	27
