General Hardware

U Bolt - AISI 304 - ALL SIZES

S413-08080

U Bolt M8 x 80mm AISI 304

$4.27 ^{ex. GST}

S413-08100

U Bolt M8 x 100mm AISI 304

$4.32 ^{ex. GST}

S413-10130

U Bolt M10 x 130mm AISI 304

$8.48 ^{ex. GST}

S413-12150

U Bolt M12 x 150mm AISI 304

$14.57 ^{ex. GST}

To access Trade Prices, click below TRADE FORM

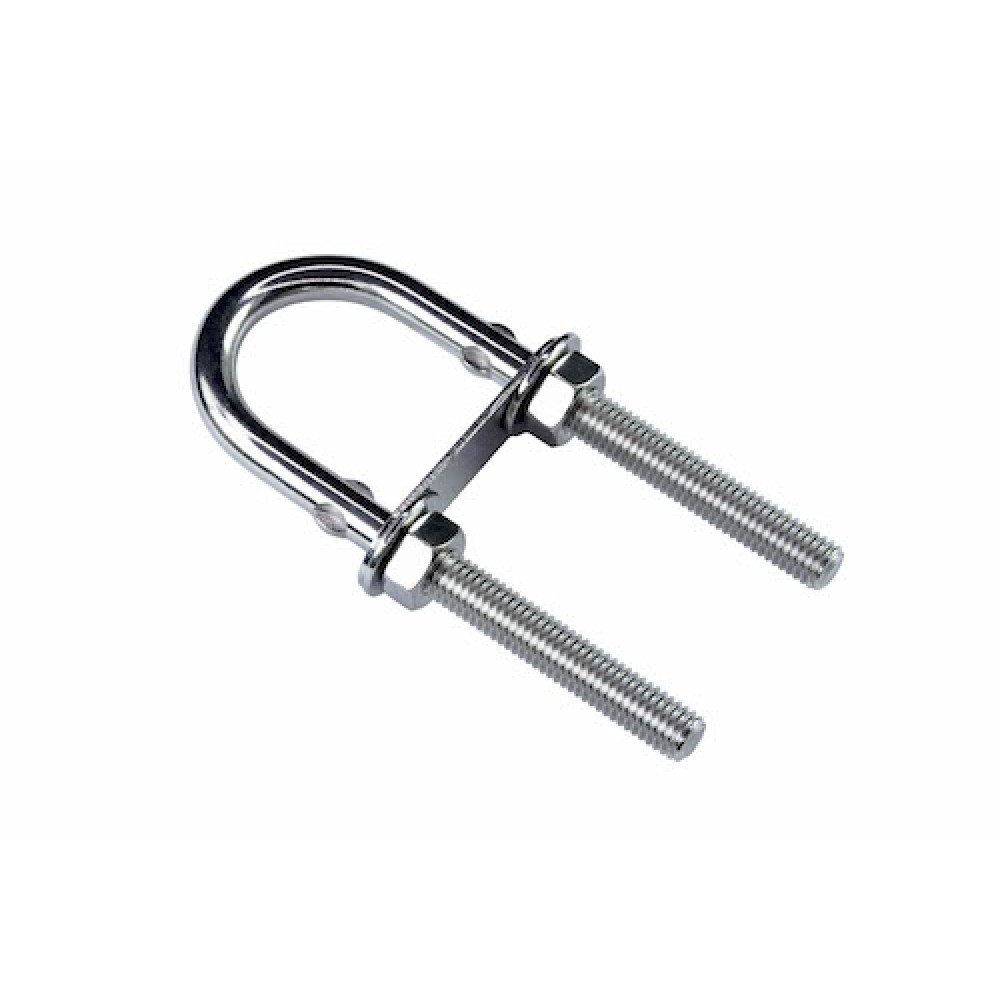

U Bolt AISI 304

Miami Stainless U Bolts are made from AISI 304 stainless steel and designed for assembly onto a flat panel to serve as an anchor point or pulling ring.

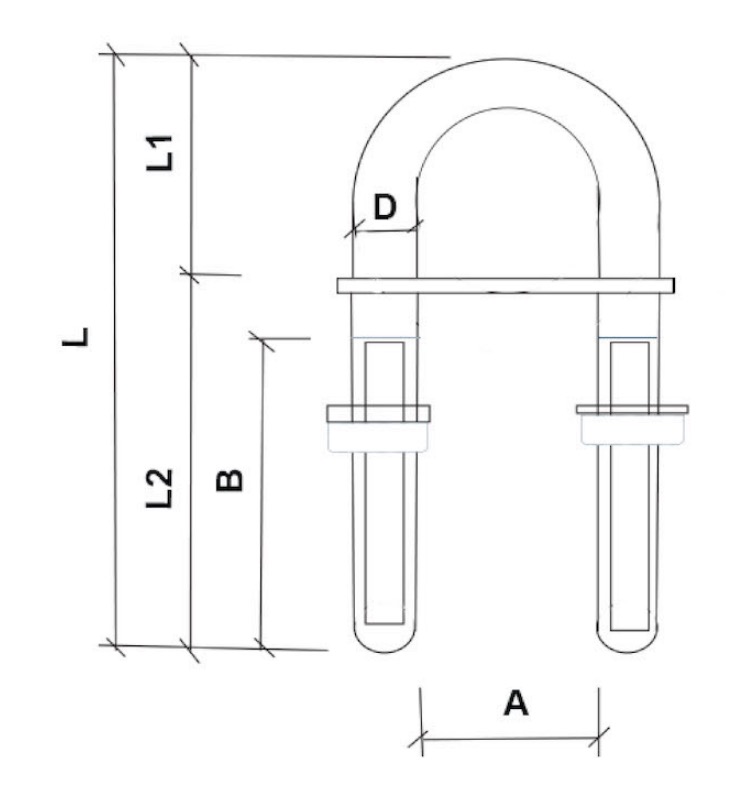

CODE	SIZE	A	B	D	L	L1	L2
S413-08080	M8X80	28	40	7	79	33	46
S413-08100	M8X100	28	50	7	98	40	58
S413-10130	M10X130	39.8	55	9	130	45	75
S413-12150	M12X150	47.8	65	11	150	55	90
