Adjuster Fork - ALL SIZES

BWC700606

WDS Adjuster Fork M6 RHT AISI 316

$58.81 ^{ex. GST}

BWC700808

WDS Adjuster Fork M8 RHT AISI 316

$67.82 ^{ex. GST}

BWC701010

WDS Adjuster Fork M10 RHT AISI 316

$79.19 ^{ex. GST}

BWC701212

WDS Adjuster Fork M12 RHT AISI 316

$110.87 ^{ex. GST}

BWC701616

WDS Adjuster Fork M16 RHT AISI 316

$163.94 ^{ex. GST}

BWC702020

WDS Adjuster Fork M20 RHT AISI 316

$238.37 ^{ex. GST}

BWC702224

WDS Adjuster Fork M24 RHT AISI 316

$321.10 ^{ex. GST}

To access Trade Prices, click below TRADE FORM

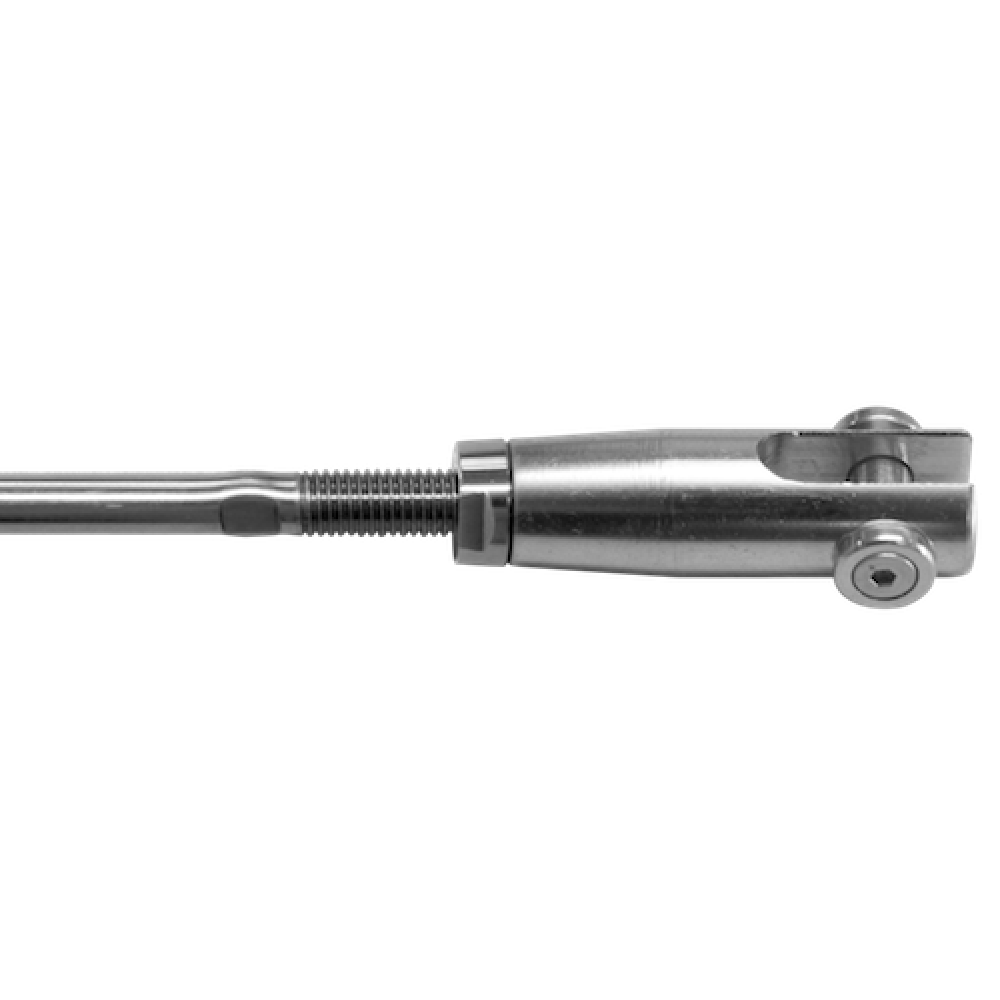

WDS Adjuster Fork AISI 316

Tie bars may be used as an alternative to wire systems - especially for static structures such as balcony supports, tie rods, cross bracing and glass façades. Standard components are adjuster forks and inside threaded connectors for tie-bars. Tie bars are available on request, can be delivered with or without key width as well as a polished or unpolished version. Adjuster eyes can also be delivered on request.

CODE	G	PIN	A	B	H	D	L1	L2	L3	L4	BREAK LOAD
BWC700606	M6	6	6	12	5	14	43	20	35	26	1200
BWC700808	M8	8	7	15	7	18	54	25.5	43.5	32	2200
BWC701010	M10	10	8	18	8	22	66	31	53	39	3400
BWC701212	M12	12	10	22	10	26	78	37	63	46	5000
BWC701616	M16	16	12	27	12	34	100	46.5	80.5	59	9400
BWC702020	M20	20	15	33.5	14	42	122	57.5	98	72	14000
BWC702224	M24	22	25	45.5	16	55	150	75	120	75	21000
