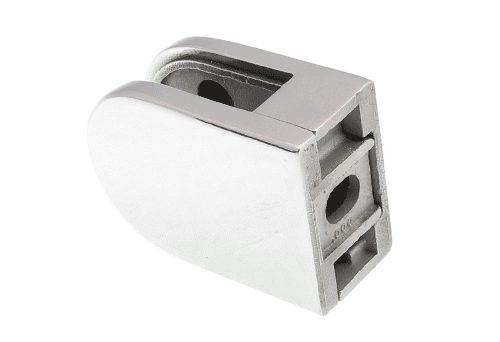

Glass Clamp Model 22 D Shape Mirror

Product Code: Q1422-00MP

Brand: Q-Railing

$13.60 ^ex.GST

To access Trade Prices, click below TRADE FORM

Model 22 suits 6-10mm Glass Flat Surface Mirror Polish Q-railing AISI 316

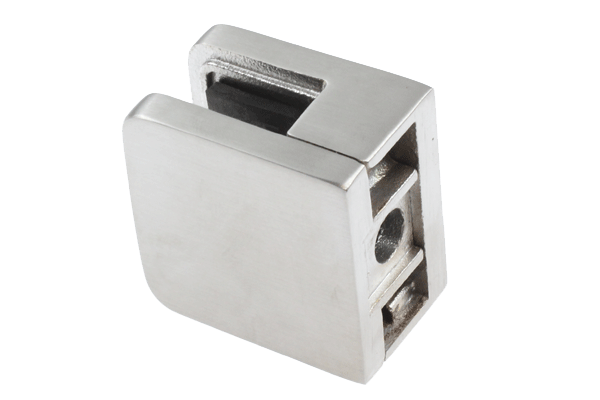

Miami Stainless range of Glass Clamps include the ultra high quality ProRail range of AISI 316 marine grade stainless steel clamps as well as genuine Q-Railing clamps. ProRail and Q-Railing Glass Clamps are available in satin finish and mirror polish to compliment your glass balustrade project.

Excludes rubber inlays. See Related Products at the bottom of the page to add corresponding rubber inlays to your shopping cart.

Stock Code	Model	Suits	Glass	H	L	W	Weight	Finish
Q1421-00SF	21	Flat Surface	6, 8, 10mm	45	63	28	217g	Satin Finish
Q1421-42SF	21	40mm, 42mm, 1-3/4" Tube	6, 8, 10mm	45	63	28	217g	Satin Finish
Q1422-00SF	22	Flat Surface	6, 8, 10mm	45	63	28	278g	Satin Finish
Q1422-48SF	22	48mm, 50mm, 2” Tube	6, 8, 10mm	45	63	28	293g	Satin Finish
Q1422-00MP	22	Flat Surface	6, 8, 10mm	45	63	28	278g	Mirror Polish
Q1422-48MP	22	48mm, 50mm, 2” Tube	6, 8, 10mm	45	63	28	293g	Mirror Polish
Q1422-00ZR	22	Flat Surface	6, 8, 10mm	45	63	28	278g	Raw
Q1422-48ZR	22	48mm, 50mm, 2” Tube	6, 8, 10mm	45	63	28	293g	Raw
Q1422-00ZSF	22	Flat Surface	6, 8, 10mm	45	63	28	278g	Satin Finish
Q1422-48ZSF	22	48mm, 50mm, 2” Tube	6, 8, 10mm	45	63	28	293g	Satin Finish
Q1425-00SF	25	Flat Surface	12mm	45	63	30	283g	Satin Finish
Q1425-48SF	25	48mm, 50mm, 2” Tube	12mm	45	63	30	283g	Satin Finish
Q1426-00SF	26	Flat Surface	8, 10, 12mm	45	63	35	457g	Satin Finish
Q1426-48SF	26	48mm, 50mm, 2” Tube	8, 10, 12mm	45	63	35	457g	Satin Finish
