Rigging Screw Toggle/Terminal - ALL SIZES

BW325510A

Rigging Screw thread terminal/toggle 3/8″ for 7/32″ wire w/9

$81.99 ^{ex. GST}

BW329520AX

Rigging Screw thread terminal/toggle 3/4″ for 3/8″ wire w/19

$407.75 ^{ex. GST}

BW321422AX

X-Rigging Screws thread terminal/toggle 7/8″ for 14 mm wire

$908.34 ^{ex. GST}

To access Trade Prices, click below TRADE FORM

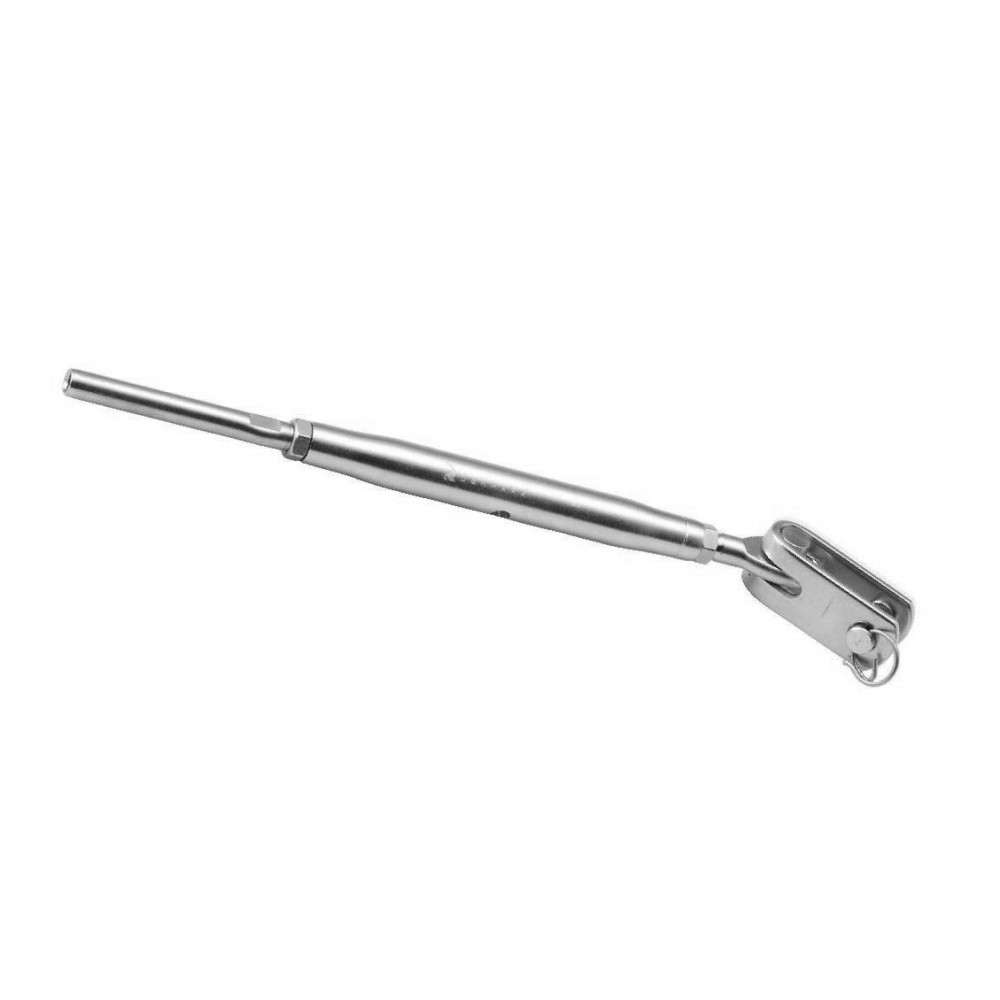

Rigging Screw Toggle/Terminal

Blue Wave Rigging screws with toggle terminal are made in Denmark to the superior Blue Wave standard, using only the highest quality 316 grade stainless steel.

CODE	THREAD INCH	FOR WIRE MM	FOR WIRE INCH	PIN	A	B	L1	L2	BREAK LOAD
BW320306A	1/4	3	1/8	6.35	8	17	253	191	1300
BW320406A	1/4	4	5/32	6.35	8	17	263	201	1300
BW320408A	5/16	4	5/32	8.0	10	20	304	228	1700
BW320508A	5/16	5	3/16	8	10	20	310	234	2200
BW320510A	3/8	5	3/16	9.5	12	26	342	258	2400
BW325510A	3/8	-	7/32	9.5	12	26	350	266	3400
BW320610A	3/8	6	-	9.5	12	26	357	273	3400
BW320611AX	7/16	6	-	11	15	28	400	310	4600
BW320612AX	1/2	6	-	12.7	18	35	421	315	5400
BW3263312AX	1/2	-	1/4	12.7	18	35	421	315	5200
BW320712AX	1/2	7	9/32	12.7	18	35	429	323	6100
BW320812AX	1/2	8	5/16	12.7	18	35	444	338	6100
BW308816AX	5/8	8	5/16	16	20	41	545	413	8700
BW329520AX	3/4	-	3/8	19	24	45	621	461	10200
BW321020AX	3/4	10	-	19	24	45	621	461	9700
BW321220AX	3/4	12	-	19	24	45	636	466	11400
BW321220AXX	3/4	12	-	19	24	45	656	496	1400
BW321320AX	3/4	-	1/2	19	24	45	657	497	12900
BW321422AX	7/8	14	-	22	26	49	779	598	15900
BW321625AX	1	16	5/8	25.4	29	59	923	694	19400
BW321927AX	1-1/8	19	3/4	28	34	60	1038	778	27600
BW322230AX	1-1/4	22	7/8	32	40	69	1172	882	34600
BW322636AX	1-3/8	26	1	36	44	77	1303	993	42400
