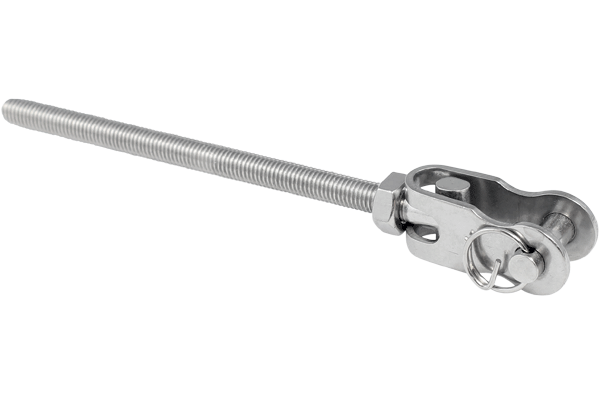

Toggle Bolt M10 x 150mm AISI 316
Product Code: S3125-10150EC
Brand: Econ
$13.38 ex.GST
To access Trade Prices, click below
TRADE FORMToggle Bolt M10 x 150mm AISI 316
Miami Stainless Toggle Bolts are high quality AISI 316 marine grade stainless steel specifically designed for use with 90mm Corner Discs, ProRig Ezi-Hold Dee Rings with Pipe or fasten directly through a shade structure posts. Miami Stainless Toggle Bolts can be fastened to most stainless steel fittings including Wall Plates, Eye Bolts or Corner Brackets.
S3125 – Toggle Bolt | 316 Grade Stainless Steel
| Stock Code | Thread | Pin Ø | A | H | L | L1 | W | BL (kg) | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|
| S3125-10150 | M10 | 10 | 18 | 26 | 150 | 205 | 24 | 2500 | 173 |
| S3125-12150 | M12 | 12 | 19 | 26 | 150 | 205 | 27 | 3700 | 255 |
| S3125-12200 | M12 | 12 | 19 | 26 | 200 | 255 | 27 | 3700 | 295 |
| S3125-12221 | M12 | 12 | 19 | 17 | 221 | 265 | 27 | 5000 | 332 |
| S3125-16150 | M16 | 16 | 18 | 42 | 150 | 240 | 36 | 6950 | 643 |
| S3125-16222 | M16 | 16 | 18 | 22 | 222 | 290 | 36 | 8000 | 707 |
Material: 316 Grade Stainless Steel Assembly: Bolt – Cast Jaw – Forged Surface Finish: Electro / Machine Polished
