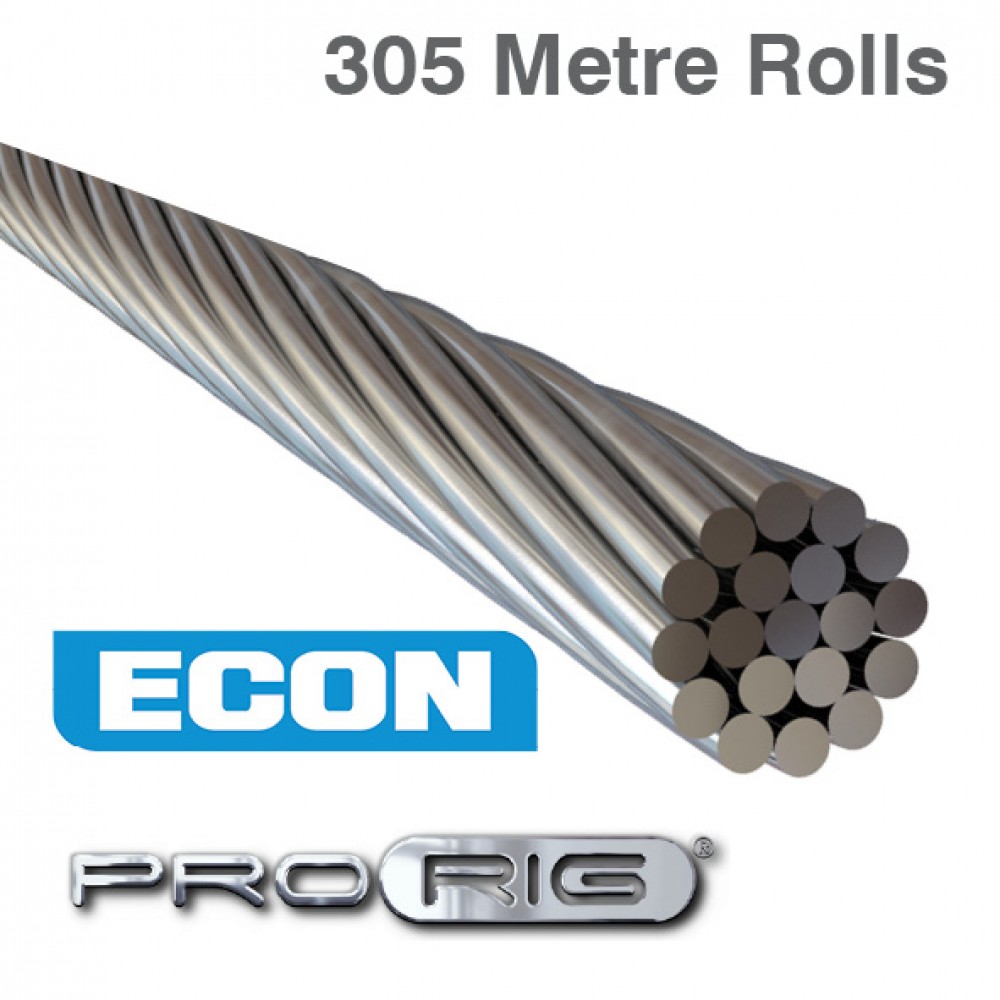

1x19 Wire Rope - 316 Grade Stainless Steel (305 Metre Rolls)

W01.6119

Wire Rope 1.6mm 1×19 ProRig AISI 316 305 Metre

$115.90 ^{ex. GST}

W02.0119

Wire Rope 2.0mm 1×19 ProRig AISI 316 305 Metre

$171.56 ^{ex. GST}

W02.5119

Wire Rope 2.5mm 1×19 ProRig AISI 316 305 Metre

$239.27 ^{ex. GST}

WE03.2119

Wire Rope Econ 3.2mm 1×19 AISI 316 305 Metre

$243.39 ^{ex. GST}

WE04119

Wire Rope Econ 4.0mm 1×19 AISI 316 305 Metre

$407.44 ^{ex. GST}

W04119

Wire Rope 4.0mm 1×19 ProRig AISI 316 305 Metre

$656.04 ^{ex. GST}

W05.5119

Wire Rope 5.5mm (7/32″) 1×19 ProRig AISI 316 305 Metre

$1,155.90 ^{ex. GST}

W05119

Wire Rope 5.0mm 1×19 ProRig AISI 316 305 Metre

$935.17 ^{ex. GST}

W06119

Wire Rope 6.0mm 1×19 ProRig AISI 316 305 Metre

$1,319.28 ^{ex. GST}

W07119

Wire Rope 7.0mm 1×19 ProRig AISI 316 305 Metre

$1,791.55 ^{ex. GST}

W08119

Wire Rope 8.0mm 1×19 ProRig AISI 316 305 Metre

$2,198.24 ^{ex. GST}

W10119

Wire Rope 10.0mm 1×19 ProRig AISI 316 305 Metre

$3,472.43 ^{ex. GST}

W14119

Wire Rope 14.0mm 1×19 ProRig AISI 316 305 Metre

$6,255.96 ^{ex. GST}

W16119

Wire Rope 16.0mm 1×19 ProRig AISI 316 305 Metre

$8,471.87 ^{ex. GST}

W19119-304

Wire Rope 19mm 1×19 ProRig AISI 304 350 Metre

$9,595.64 ^{ex. GST}

To access Trade Prices, click below TRADE FORM

List of all diameter wires available in 1x19 Construction in 305 metre roll. Wire Rope Brands ProRig Wire - ProRig stainless steel wire rope is produced by an outstanding Korean manufacturer with the most stringent quality control standards and by using only the highest quality Korean and Japanese raw material. The end product has an outstanding quality standard that is regarded worldwide as being amongst the best quality of all stainless steel wire ropes available. Miami Stainless has confidently supplied the Australian Stainless Wire Rope without fault or failure for over 15 years. Econ Wire - Econ Wire sets the economy standard for all budget priced stainless steel wire rope. While it shouldn’t be compared with the higher quality ProRig wire, we are confident that Econ wire is the best available at this price level. Wire Rope Specifications

Econ 316 Grade Stainless Steel Wire

CODE	SIZE	CONSTRUCTION	BREAK STRAIN
WE03.077	3.0	7X7	548
WE03.2119	3.2	1X19	1052
WE03.277	3.2	7X7	626
WE03.2719	3.2	7X19	633
WE04119	4.0	1X19	1449
WE0477	4.0	7X7	918
WE04719	4.0	7X19	1449
WE05719	5.0	7X19	1359
WE06719	6.0	7X19	1917
WE08719	8.0	8X19	3400

ProRig 316 Grade Stainless Steel Wire

CODE	GRADE	SIZE	CONSTRUCTION	BREAK STRAIN
W02.0719	316	2.0	7X19	230
W02.5719	316	2.5	7X19	367
W03.2719	316	3.2	7X19	695
W04719	316	4.0	7X19	960
W05719	316	5.0	7X19	1490
W06719	316	6.0	7X19	2150
W08719	316	8.0	7X19	3820
W10719	316	10.0	7X19	5106
W12719	316	12.0	7X19	7350
W14719	316	14.0	7X19	11690
W16719	316	16.0	7X19	14460

All sizes in mm. Miami Stainless supplies an ultra-high quality ProRig 316 marine grade Stainless Steel Wire Rope produced by a single manufacturer with over 40 years of experience. ProRig 1 x 19 strand stainless steel wire rope is the least flexible, multi-purpose wire rope with a braided surface and bright finish, suitable for most applications including shade structures, shade umbrellas and sail, wire balustrades, architectural rigging and green-walls or cable trellis. ProRig 1 x 19 Wire Rope ends should be swaged with a hydraulic swage press. Miami Stainless stocks a range of ProRig wire rope that comes in variety of sizes from 1.2mm – 16.0mm and are constructed and supplied in 7 x 7, 7 x 19 or 1 x 19. Wire Rope can be purchased by the metre or in 305 metre rolls. Miami Stainless also supplies a limited range of 1000 metre rolls.
