Dee Shackle Slot Head - Cast - ALL SIZES

S360C-04PR

Dee Shackle Slot Head 4mm ProRig AISI 316

$1.76 ^{ex. GST}

S360C-06PR

Dee Shackle Slot Head 6mm ProRig AISI 316

$2.42 ^{ex. GST}

S360C-08PR

Dee Shackle Slot Head 8mm ProRig AISI 316

$3.38 ^{ex. GST}

S360C-10PR

Dee Shackle Slot Head 10mm ProRig AISI 316

$3.90 ^{ex. GST}

To access Trade Prices, click below TRADE FORM

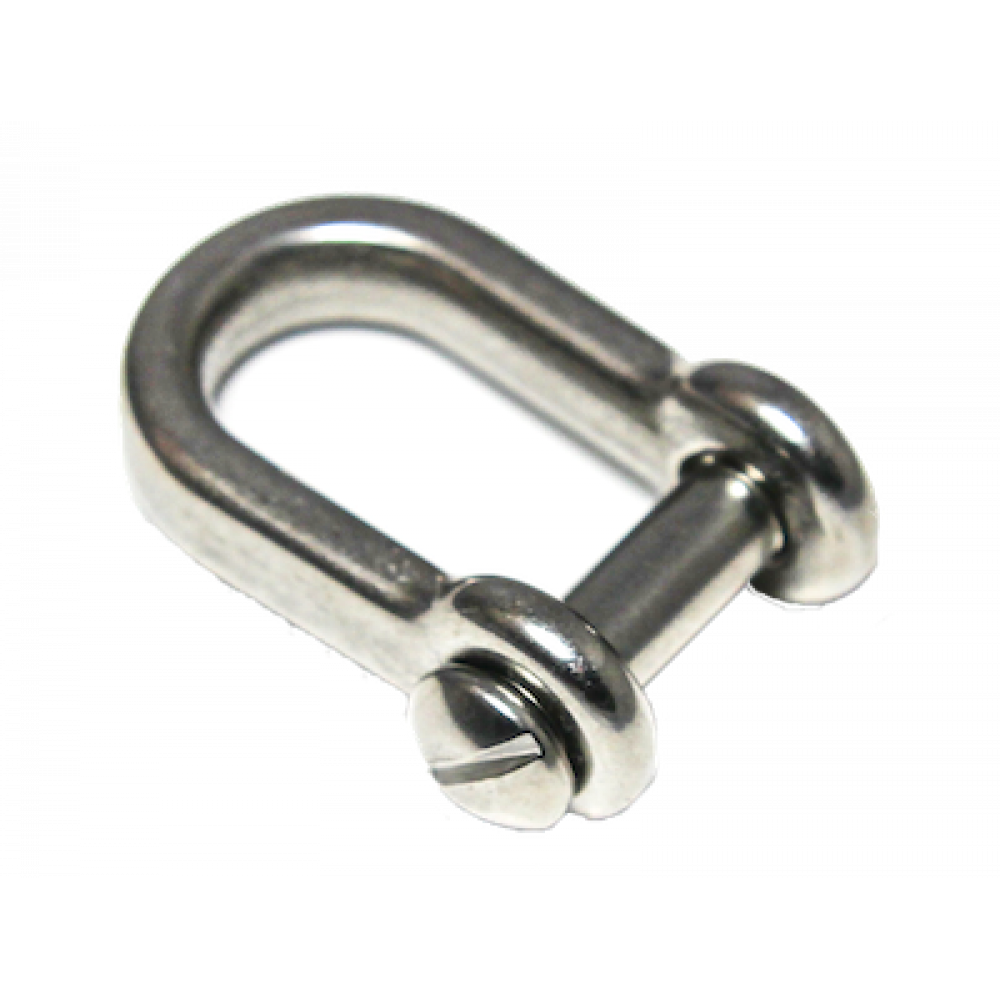

Dee Shackle Slot Head AISI 316

Miami Stainless Slot Head Shackles are made from high quality AISI 316 marine grade stainless steel. Miami Stainless stainless steel shackles are specifically designed for general purpose, Marine and shade sail applications where the head of the pin needs to be concealed or kept fastened.

CODE	SIZE	D	A	L1	L2	BREAK LOAD*	TYPE
S360C-04	4	4	8.7	14.5	20	552	Cast
S360C-06	6	6	12.5	21.5	30	1700	Cast
S360CF-06	6	6	12	21.5	30	1700	Forged
S360C-08	8	8	16.5	28.5	40.5	2800	Cast
S360CF-08	8	8	16.5	28.5	40.5	2400	Forged
S360C-10	10	10	20.5	34.5	50.5	3700	Cast
S360CF-10	10	10	20.5	34.5	50.5	4100	Forged
