Lag Screw - ALL SIZES

S7831L-030630

Lag Screw suits 3.2mm wire M6 x 30mm LHT AISI 316

$1.35 ^{ex. GST}

S7831R-030630

Lag Screw suits 3.2mm wire M6 x 30mm RHT AISI 316

$1.37 ^{ex. GST}

S7831L-030640

Lag Screw suits 3.2mm wire M6 x 40mm LHT AISI 316

$1.39 ^{ex. GST}

S7831R-030640

Lag Screw suits 3.2mm wire M6 x 40mm RHT AISI 316

$1.39 ^{ex. GST}

To access Trade Prices, click below

TRADE FORM

Lag Screw AISI 316 Miami Stainless Lag Screws are high quality forged AISI 316 marine grade stainless steel and are designed to fasten wire rope to timber posts, walls and panels. Check out our exclusive online Balustrade Builder here if you require a Lag Screw Swage Stud Balustrade System.

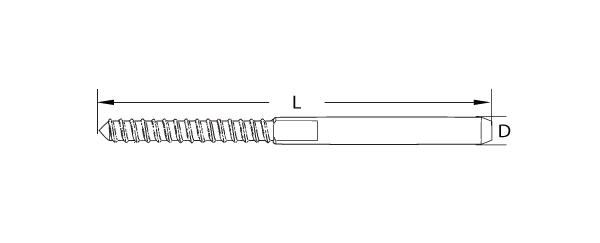

CODE	THREAD	L	D	T	FOR WIRE	PULL OUT (kg)*
S7831L-030630	M6x30mm LHT	70	6	30	3.2mm	400
S7831R-030630	M6x30mm RHT	70	6	30	3.2mm	400
S7831L-030640	M6x40mm LHT	90	6	40	3.2mm	580
S7831R-030640	M6x40mm RHT	90	6	40	3.2mm	580

*Pull out strengths are based on the maximum pull out loads achieved using MGP 10 structural pine. They are intended as a guide only and a safety factor should be applied to these readings depending on the situation of use. Much greater results can be achieved using hardwoods; for example Kwila will hold around 80-90% more tension.
