Turnbuckle Hook/Eye - AISI 316 Stainless Steel - ALL SIZES

S311HE-04PR

Turnbuckle 4mm Hook/Eye ProRig AISI 316

$3.72 ^{ex. GST}

S311HE-05EC

Turnbuckle 5mm Hook/Eye Econ AISI 316

$1.89 ^{ex. GST}

S311HE-05PR

Turnbuckle 5mm Hook/Eye ProRig AISI 316

$3.80 ^{ex. GST}

S311HE-06EC

Turnbuckle 6mm Hook/Eye Econ AISI 316

$2.65 ^{ex. GST}

S311HE-06PR

Turnbuckle 6mm Hook/Eye ProRig AISI 316

$5.69 ^{ex. GST}

S311HE-08EC

Turnbuckle 8mm Hook/Eye Econ AISI 316

$5.02 ^{ex. GST}

S311HE-08PR

Turnbuckle 8mm Hook/Eye ProRig AISI 316

$8.90 ^{ex. GST}

S311HE-10EC

Turnbuckle 10mm Hook/Eye Econ AISI 316

$9.56 ^{ex. GST}

S311HE-10PR

Turnbuckle 10mm Hook/Eye ProRig AISI 316

$13.99 ^{ex. GST}

S311HE-12PR

Turnbuckle 12mm Hook/Eye ProRig AISI 316

$26.12 ^{ex. GST}

To access Trade Prices, click below TRADE FORM

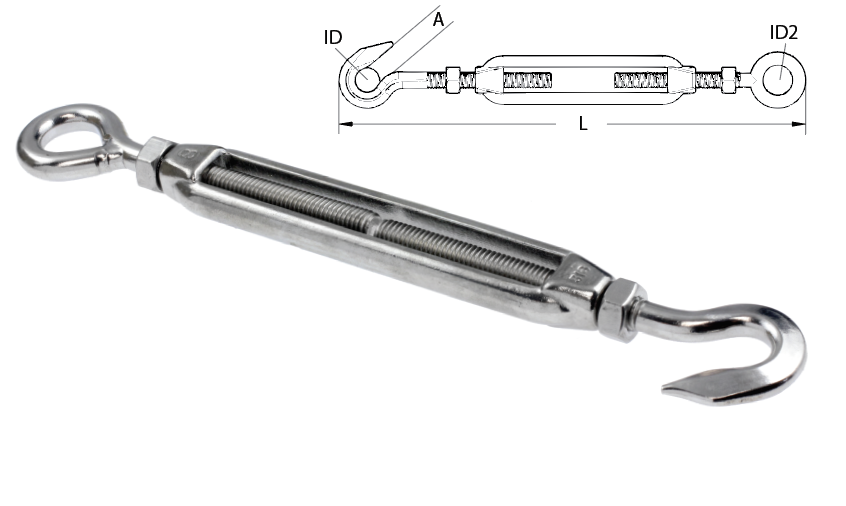

Turnbuckle Hook/Eye AISI 316

Miami Stainless AISI 316 marine grade stainless steel ECON Turnbuckles Hook/Eye, are specifically suited for adjusting the tension and length of stainless steel wire rope, balustrade systems and other tensioning methods. Miami Stainless Turnbuckles consists of two (2) threaded AISI 316 grade stainless steel forged Jaw, forged Eye or welded Hook Terminals screwed into each end of a forged stainless steel frame. Miami Stainless range of Turnbuckles include Econ and the ultra high quality ProRig brand.

BL – Breaking Load All sizes in millimetres (mm) *It is the Purchasers’ responsibility to determine whether the testing procedure and breaking load is suitable for purpose.

CODE	TYPE	THREAD	L-MIN	L-MAX	ID	ID2	A	BREAK LOAD*
S311HE-04 - PRORIG	HOOK/EYE	M4	102	148	8	7	4	100
S311HE-05 - PRORIG	HOOK/EYE	M5	120	160	10	8	5	130
S311HE-05 - ECON	HOOK/EYE	M5	120	160	10	8	5	130
S311HE-06 - PRORIG	HOOK/EYE	M6	155	220	12	10	6	350
S311HE-06 - ECON	HOOK/EYE	M6	155	220	12	10	6	350
S311HE-08 - PRORIG	HOOK/EYE	M8	225	290	13.5	12	8	650
S311HE-08 - ECON	HOOK/EYE	M8	225	290	13.5	12	8	650
S311HE-10 - PRORIG	HOOK/EYE	M10	255	350	17	15	10	800
S311HE-10 - ECON	HOOK/EYE	M10	255	350	17	15	10	800
S311HE-12 - PRORIG	HOOK/EYE	M12	320	470	20	18	12	1400
