Wire Rope

Wire Rope Econ 8.0mm 7×7 AISI 316 per Metre

Product Code: WE0877-MTR

Brand: Econ

$4.23 ^ex.GST

To access Trade Prices, click below

TRADE FORM

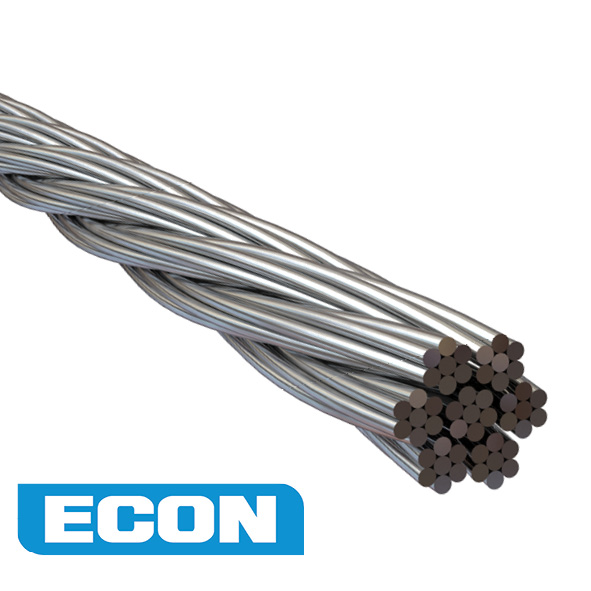

Wire Rope 8.0mm 7 x 7 Econ AISI 316 PER METRE

Miami Stainless supplies a high quality Econ 316 marine grade Stainless Steel Wire Rope. Econ 7 x 7 strand stainless steel wire rope is the most flexible, multi-purpose wire rope with a braided surface and bright finish, suitable for applications including shade structures, shade umbrellas and sails. Miami Stainless stocks a range of Econ wire rope that comes in variety of sizes from 3.0mm – 10.0mm and are constructed and supplied in 7 x 7, 7 x 19 or 1 x 19. Wire Rope can be purchased by the metre or in 305 metre rolls. Wire Rope Specifications

ProRig 316 & 304 Grade Stainless Steel Wire Rope – 7x7

CODE	GRADE	SIZE	CONSTRUCTION	BREAK STRAIN
W01.277	316	1.2	7x7	100
W01.677	316	1.6	7x7	168
W02.077	316	2.0	7x7	258
W02.577	316	2.5	7x7	400
W0377	316	3.0	7x7	585
W03.277-304	304	3.2	7x7	750
W03.277	316	3.2	7x7	685
W0477-304	304	4.0	7x7	1139
W0477	316	4.0	7x7	1040
W0577-304	304	5.0	7x7	1788
W0577	316	5.0	7x7	1620
W0677	316	6.0	7x7	2330
W0877	316	8.0	7x7	3950
W1077	316	10.0	7x7	5517
W1277	316	12.0	7x7	7948

BS – Breaking Strain (kg) | All sizes in millimetres (mm)

Econ 316 Grade Stainless Steel Wire Rope – 7x7

CODE	GRADE	SIZE	CONSTRUCTION	BREAK STRAIN
WE03.077	316	3.0	7x7	548
WE03.277	316	3.2	7x7	626
WE0477	316	4.0	7x7	918
WE0477-304	304	4.0	7x7	918
WE0877	316	8.0	7x7	-
