General Hardware

Fork Terminal - AISI 316 - ALL SIZES

S7803-1220PR

Fork Terminal 20mm Pin suits 12mm Wire ProRig

$34.44 ^{ex. GST}

S7803-0812EC

Fork Terminal 12mm Pin suits 8mm Wire Econ AISI316

$6.90 ^{ex. GST}

S7803-0816EC

Fork Terminal 16mm Pin suits 8mm Wire Econ AISI316

$12.92 ^{ex. GST}

S7803-0814EC

Fork Terminal 14mm Pin suits 8mm Wire Econ

$14.51 ^{ex. GST}

S7803-06412EC

Fork Terminal 12mm Pin suits 6.4mm Wire Econ

$7.35 ^{ex. GST}

S7803-0612EC

Fork Terminal 12mm Pin suits 6mm Wire Econ

$5.13 ^{ex. GST}

S7803-1624PR

Fork Terminal 24mm Pin suits 16mm Wire ProRig

$90.70 ^{ex. GST}

S7803-1424PR

Fork Terminal 24mm Pin suits 14mm Wire ProRig

$70.15 ^{ex. GST}

S7803-0305EC

Fork Terminal 5mm Pin suits 3.2mm Wire Econ

$1.18 ^{ex. GST}

S7803-0814PR

Fork Terminal 14mm Pin suits 8mm Wire ProRig

$16.76 ^{ex. GST}

S7803-0612PR

Fork Terminal 12mm Pin suits 6mm Wire ProRig

$11.07 ^{ex. GST}

S7803-0508PR

Fork Terminal 8mm Pin suits 5mm Wire ProRig

$4.54 ^{ex. GST}

S7803-0408PR

Fork Terminal 8mm Pin suits 4mm Wire ProRig

$4.62 ^{ex. GST}

S7803-0406PR

Fork Terminal 6mm Pin suits 4mm Wire ProRig

$3.38 ^{ex. GST}

S7803-0306EC

Fork Terminal 6mm Pin suits 3.2mm Wire Econ

$1.85 ^{ex. GST}

S7803-0305PR

Fork Terminal 5mm Pin suits 3.2mm Wire ProRig

$2.81 ^{ex. GST}

S7803-0406EC

Fork Terminal 6mm Pin suits 4mm Wire Econ

$2.21 ^{ex. GST}

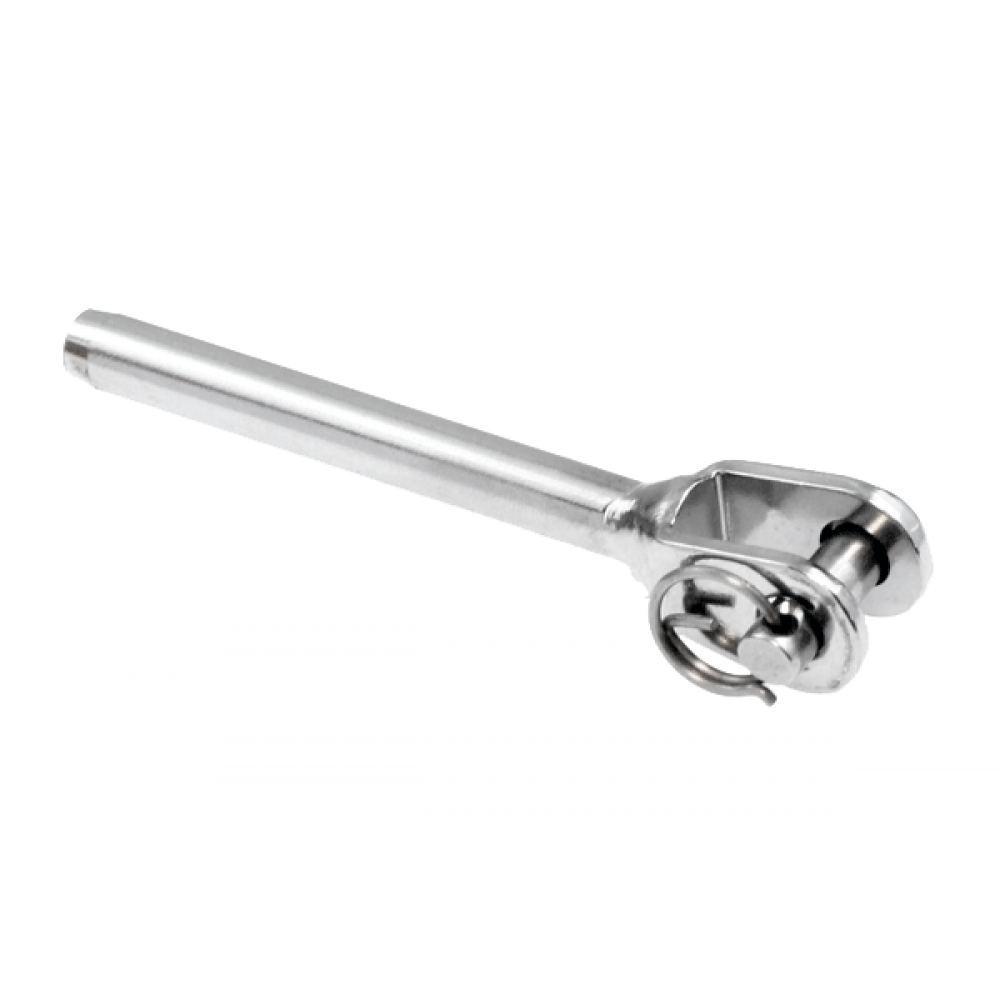

Fork Terminal AISI 316

Miami Stainless Fork Terminals are cast AISI 316 marine grade stainless steel and designed to attach stainless steel wire rope to a wide range of fixtures and fittings such as Screw Eyes, Saddles and Eye Bolts. Miami Stainless supplies Econ and the ultra high quality ProRig brands. Please Note: Swage Terminals must be swaged to wire rope with an appropriate swaging press. Fork terminal

CODE	FOR WIRE	L	L1	D	D1	BREAK STRAIN
S7803-0305 - PRORIG	3.2mm	65	7	6.3	5	1200
S7803-0305- ECON	3.2mm	65	7	6.3	5	1200
S7803M-0305 - ECON	3.2mm	45	7	6.3	5	1200
S7803-0406 - PRORIG	4mm	72	8	7	6	1800
S7803-0406 - ECON	4mm	72	10	7	6	1800
S7803-0408 - PRORIG	4mm	75	11	7	8	1800
S7803-0508 - PRORIG	5mm	85	11.5	9	8	2300
S7803-0509 - PRORIG	5mm	88	12	9	8	2000
S7803-0612 - PRORIG	3.2mm	65	7	6.3	5	1200
S7803-0612 - ECON	6mm	108	15	13	12	4000
S7803-06412 - ECON	6.4mm	129	15	12.5	12	3000
S7803-0814 - PRORIG	3.2mm	65	7	6.3	5	1200
S7803-0814 - ECON	8mm	148	15	16	14	6500
S7803-0816 - PRORIG	8mm	145	17	16	16
S7803-1016 - PRORIG	10mm	154	17	18	16	9000
S7803-1220 - PRORIG	12mm	176	20	22	20	11000
S7803-1424 - PRORIG	14mm	257	30	25	24	13000
S7803-1624 - PRORIG	16mm	281	30	28.5	24	18000
