Dee Shackle Slot Head - Cast - ALL SIZES

From:
$1.83
Ex Tax: $1.66
  • Availability:

OverView

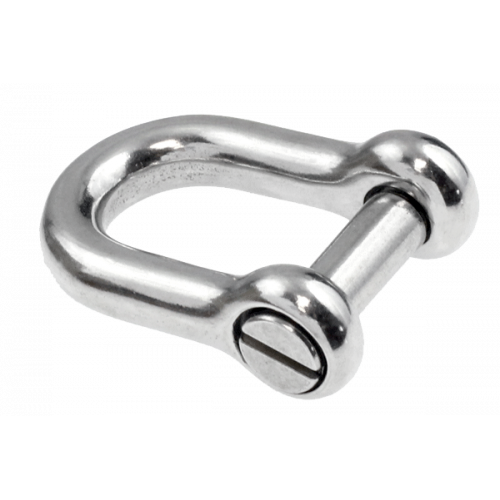

Dee Shackle Slot Head AISI 316

Dee Shackle Slot Head AISI 316

Miami Stainless Slot Head Shackles are made from high quality AISI 316 marine grade stainless steel.  Miami Stainless stainless steel shackles are specifically designed for general purpose, Marine and shade sail applications where the head of the pin needs to be concealed or kept fastened.


CODESIZEDAL1L2BREAK LOAD*TYPE
S360C-04448.714.520552Cast
S360C-066612.521.5301700Cast
S360CF-06661221.5301700Forged
S360C-088816.528.540.52800Cast
S360CF-088816.528.540.52400Forged
S360C-10101020.534.550.53700Cast
S360CF-10101020.534.550.54100Forged

* Break loads shown applies to ProRig only.

Sizes are in mm.
